Filter Beer And Sugar Sieve Bend Stainless Steel Wedge Wire Screen

Anping County Baitong wire mesh products Co., Ltd
Contact Now

Filter Beer And Sugar Sieve Bend Stainless Steel Wedge Wire Screen

  • 1
  • 2

Brand Name : BaiTong

Model Number : Sieve Bend Wedge Wire Screen

Certification : ISO9001

Place of Origin : China

MOQ : 1PCS

Price : Negotiated

Payment Terms : T/T

Supply Ability : 1000 square meter per day

Delivery Time : 5-25days

Packaging Details : Wooden Box or Pallets.

Product name : Wedge Vee Wire Screen

Different Names : Wedge Wire Screen,Screw Press Screens, Sieve Bend Filter Screen

Usages : Water Filter Parts, Poultry, fish, fruit and vegetable waste water processing.

filtering : 0.05 mm , 0.08 mm , 0.1 mm , 0.15 mm, 0.2 mm, 0.25 mm,0.3 mm.....etc

Color : stainless steel color

Material : 304 or 316 L Stainless Steel

Length : 2.5~40", 5/10/20/30/40Inch, 40", 10'' 20''

Sheet Size : 585mmx1592mm

Function : pre-filter, Filtering Suspended Matter, Water treatment

After-sales service provided : Online support, Video technical support

Contact Now

Stainless Steel For Filter Beer And Sugar Sieve Bend Wedge Wire Screen

Wedge Wire Screen Features:

► Flat surface.

►Excellent filtering performance.

►Accurate distance between supporting profile.

►Welded production process for solid and strong structure.

► Good mechanical properties.

►High strength.

► High load capacity.

►Corrosion and rust resistance.

►Temperature resistance.

►Chemical stability.

Wedge Wire Screen Factors affecting screening efficiency:

1. The size of the feeding pressure. The feed pressure should be 0.2~0.4MPa.

The higher the pressure, the higher the screening efficiency, and the lower the pressure, the lower the

screening efficiency.

2. The arc surface of the nozzle and the sieve should be tangent. If the installation accuracy is too poor,

it will not be possible to produce the cutting effect, so the screen surface will not be able to screen the

material, or the movement of the material is blocked and the direction of movement is changed.

At this time, the screen surface will also lose the function of screening the material.

3. The effect of the fine grinding process before the sieve: it cannot be ground too fine, otherwise the

ground slag particles will enter the starch milk together with the starch granules, which will increase the

slag content in the starch milk.

Wedge Wire Screen Process conditions and factors affecting the screening effect:

The operating pressure is controlled between 0.2 and 0.4 MPa, and the pressure is high, the screening

efficiency is high, and the production capacity is also large. If the pressure is low, the screening efficiency

is also low, and the production capacity is also low.

When sieving, the dry matter content of the feed is about 17%. 10-11BX, the SO2 content in the slurry

should be between 0.035~0.045%.

Material: 316L or selected material.

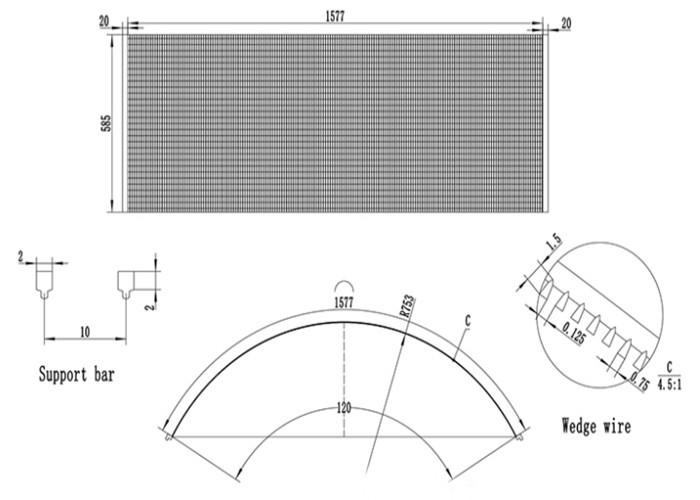

Name Sieve Bend Wedge Wire Screen
Wedge Wire 0.5x1.5, 0.75x1.5,1x2,1.5x2.5,2x3,2x4,3x5,etc.
Support Rod 1.5x2.5,2x3,3x5,4x7,5x8,etc,
Material Stainless steel 304 304L 316 316L or as customer's request
Frame No Frame or "L" Type frame, Ordinary Frame,5x10mm frame,etc. Customized is available
Arc height 10mm,15mm,20mm,50mm or depend on you size of screen panel.

Wedge Wire Screen Application:

The wedge wire sieve bends are mainly used for dewatering, sizing and waste water cleanup applications.

They can be used in various fields, such as:

  • Sewage treatment.
  • Laundry wash water cleanup.
  • Poultry, fish, fruit and vegetable waste water processing.
  • Minerals processing.
  • Paper production.
  • Textile plants.

Wedge Wire Screen Packing&Details:
Filter Beer And Sugar Sieve Bend Stainless Steel Wedge Wire ScreenFilter Beer And Sugar Sieve Bend Stainless Steel Wedge Wire Screen
Filter Beer And Sugar Sieve Bend Stainless Steel Wedge Wire Screen
