Filter Direction From Outside To Inside Stainless Steel Johnson Wire Screen
Stainless Steel Johnson Wire Screen Description
Stainless Steel Johnson Wire Screen is made up of rods and warp. The rod can be round wire,
triangular wire or trapezoid wire.The warp is triangular wire (V-shaped wire).
The Stainless Steel Wedge Wire Screen is newly developing products in wire mesh industry.
they have the characteristics of easy to leak,wear-resisting,corrosion-resising,the cross section of net
trapezoidal,the top is narrow,the under is wide,widely used in mine,coal,petroleum,fertilizer,grain,salt,
environmental protection.etc
Stainless Steel Johnson Wire Screen Specification:
| Outside Diameter (mm) | Length (mm) | Slot (mm) | Styles of Connection (mm) |
| 29,38,42,57,63,76,89,108,150, 168,320,600,900,985 | 1000,2000,3000,4000 | 0.05,0.1,0.25,0.5,1.0,2.0 | Welded rings, male/female threaded coupling,flange,closed up |
| Explanation | Besides above of the specification screen pipe, we also can produce according to the customer’s request. the diameter from Ø29mm-Ø1200mm, the length from the 100mm-4000mm series screen pipe |
Stainless Steel Johnson Wire Screen Characteristics
►V-Shaped Slots: Openings shaped like a "v" that open toward the inside of the well tend to allow the
particles that are just barely smaller than the width of the slot pass. In other shapes of openings,
these particles would get caught in the screen and clog it.
►Very Large Open Area: This design gives continuous slot and hence the% open area for water to
enter is more than 2 times that of conventional slotted pipes of any size and slot opening.
This allows more water to enter at much lesser frictional head loss and the efficiency of
tube well is improved appreciably.
►Better Sand Filtration: Due to specialize manufacturing process, wide range of slot opening
is available down to 0.15mm to allow proper slot selection depending upon the size of sand in
particular area. This gives better sand control and reduced pump maintenance and longer tube well life.
►Energy Saving: Due to reduce frictional head losses and increased discharge, the pump load reduces
the power required to pump same quantity of water. Power saving of around 20-25% is observed.
►continuous slots signifcantly increase increase discharge area,thus providing greater access to
water-beaeing zone.
we can produce this pipe with diameter 80mm-500mm,slot size 0.1mm-10mm,length 50mm-5850mm.
Stainless Steel Johnson Wire Screen Application:
Stainless Steel Johnson Wire Screen /strainer tube/water filter pipe is water treatment equipment with
holes.it can be used with deep well pumps or submersible pumps together;it can be also used for water
treatment equipment,environmental protection,desalination processing of transferring sea water to
industrial water and domestic water,running water treatment,water sottening process and petrochemical
industry:terminal filtration for petrolic products,filtration for chemical acid and soda liquid,and recovery
filtration for alcohol and other organic solvents.

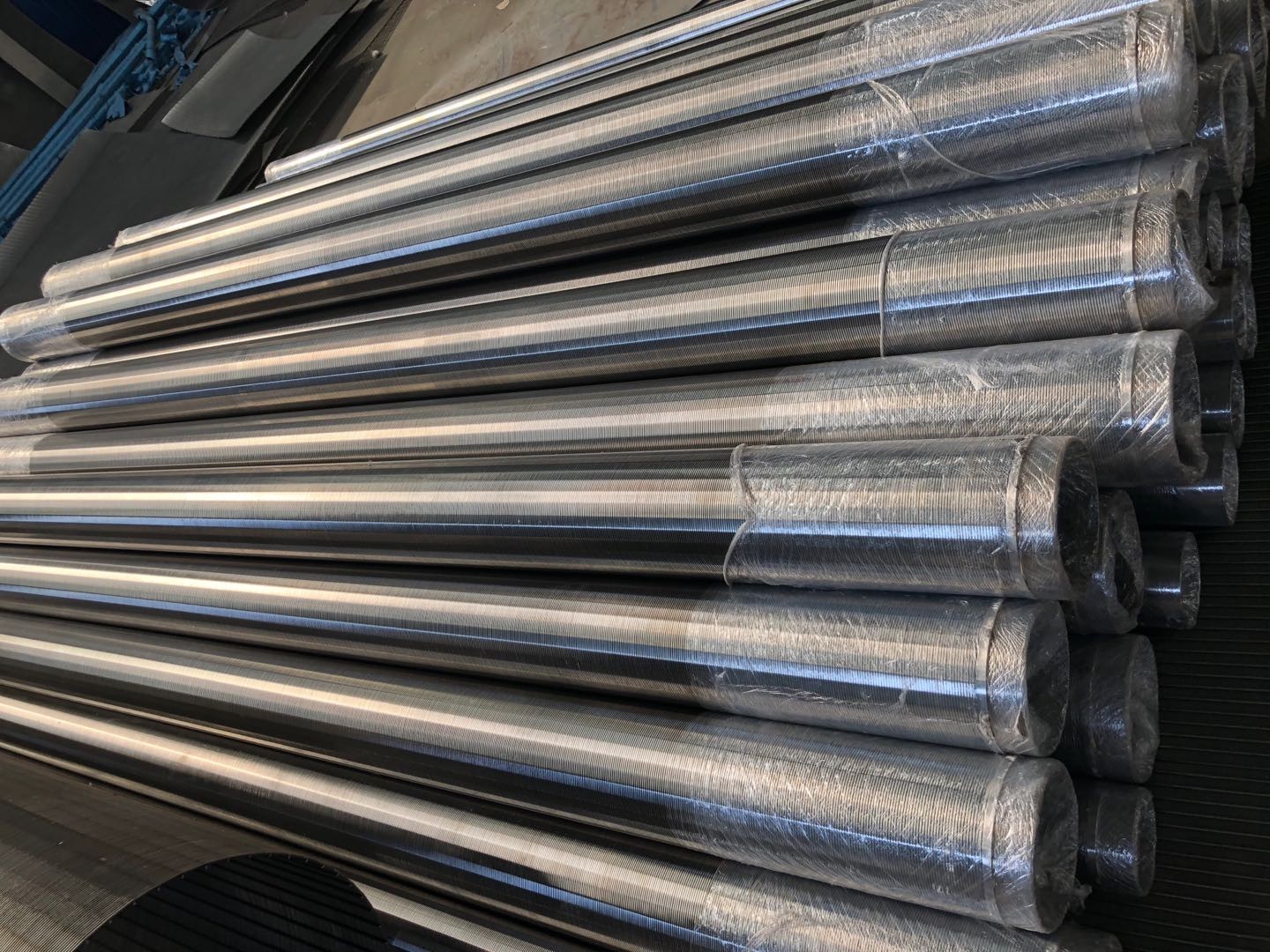

Stainless Steel Johnson Wire Screen Packing&Delivery:
